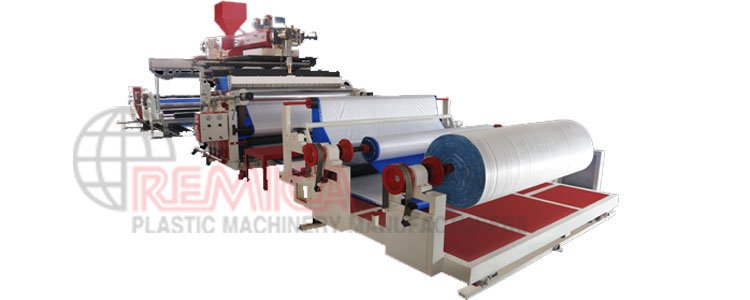

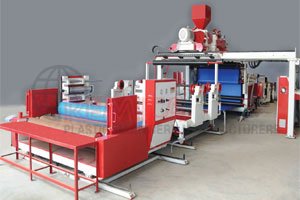

Lamination Plant Indigenously Developed Using Unique And Latest Patented Technology.Machine With Better Business Sense.
Upgraded Quality Of Extrusion System With High Productivity,Long Durability,Great Efficiency And Top Performance To Meet Customers Expectations.
| SIZE | RLAM - 6 FT | RLAM - 8 FT | RLAM - 10 FT | RLAM - 12 FT | RLAM - 16 FT | RLAM - 18 FT |
|---|---|---|---|---|---|---|
| SCREW DIA | 90 MM | 100 MM | 100 MM | 110 MM | 110 MM | 120 MM |
| L/D RATIO | 1:30 | 1:30 | 1:30 | 1:30 | 1:30 | 1:30 |
| T-DIE SIZE | 1980 MM | 2600 MM | 3251 MM | 3860 MM | 5078 MM | 6000 MM |
| COATING WIDTH | 900 MM TO 1850 MM | 1850 MM TO 2450 MM | 2440 MM TO 3050 MM | 2440 MM TO 3660 MM | 3660 MM TO 4880 MM | 4800 MM TO 5800 MM |
| MAIN MOTOR | 30 HP | 40 HP | 50 HP | 100 HP | 120 HP | 150 HP |
| LAMINA FOR UNIT | 7.5 HP | 7.5 HP | 10 HP | 10 HP | 15 HP | 20 HP |
| WINDER | 5 HP | 5 HP | 7.5 HP | 7.5 HP | 10 HP | 15 HP |
| WEB UNIT | 0.5 HP | 1 HP | 1.5 HP | 1.5 HP | 1.5 HP | 1.5 HP |
| HEATING LOAD | 46 KW | 50 KW | 75 KW | 88 KW | 100 KW | 115 KW |
| TOTAL POWER APPROX | 85 KW | 95 KW | 125 KW | 180 KW | 240 KW | 290 KW |
| MAX. OUTPUT | 180 Kg /hr | 200 Kg /hr | 220 Kg /hr | 350 Kg /hr | 400 Kg /hr | 500 Kg /hr |
| MATERIAL | LL / LLDE / PP | LL / LLDE / PP | LL / LLDE / PP | LL / LLDE / PP | LL / LLDE / PP | LL / LLDE / PP |
| MAX LINE SPEED | 100 MTR / MINUTE | 70 MTR / MINUTE | 70 MTR / MINUTE | 80 MTR / MINUTE | 70 MTR / MINUTE | 70 MTR / MINUTE |
| SPACE L x W x H | 50ft x 32ft x 12ft | 55ft x 35ft x 12ft | 55ft x 35ft x 12ft | 55ft x 35ft x 12ft | 60ft x 50ft x 12ft | 60ft x 55ft x 12ft |
Technical data subject to change without notice due to continuous development. Refer our quotation for details.
